直流输入 12-63VDC宽压 无风扇ATX电源

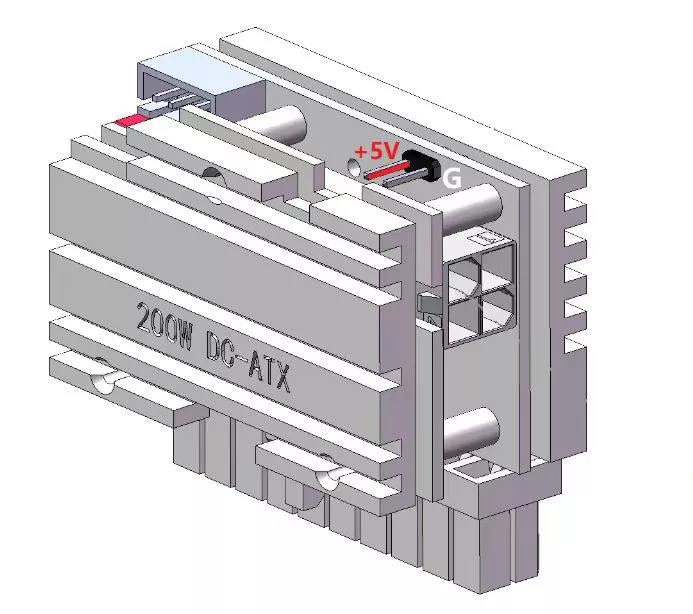

HDPLEX 200W DC-ATX

Input Voltage: 12V-48V DC

Wattage: 200W (220W Peak), >94% Efficiency

Operating Temperature: -10°C to 70°C

Size: 45(H) x 53(W) x 28.5(D) mm,

HDPLEX 400W DC-ATX

Input Voltage: 12V-48VDC

Wattage: 400W (500W Peak) >94% DC-DC Efficiency

Operating Temperature: -10℃ - 70℃

Dimension(without cable) :160(L) x 51.5 (W) x 26 (H) mm

Safety: Overvoltage protection, Overload protection,Overcurrent protection, short circuit protection

Certification: RoHS (HTT141103075R), FCC(HTT141103075F),CE (HTT141103075E),

EN 61003- 3-2:2006+A1:2009+A2:2009,EN 61000-3-3:2008.

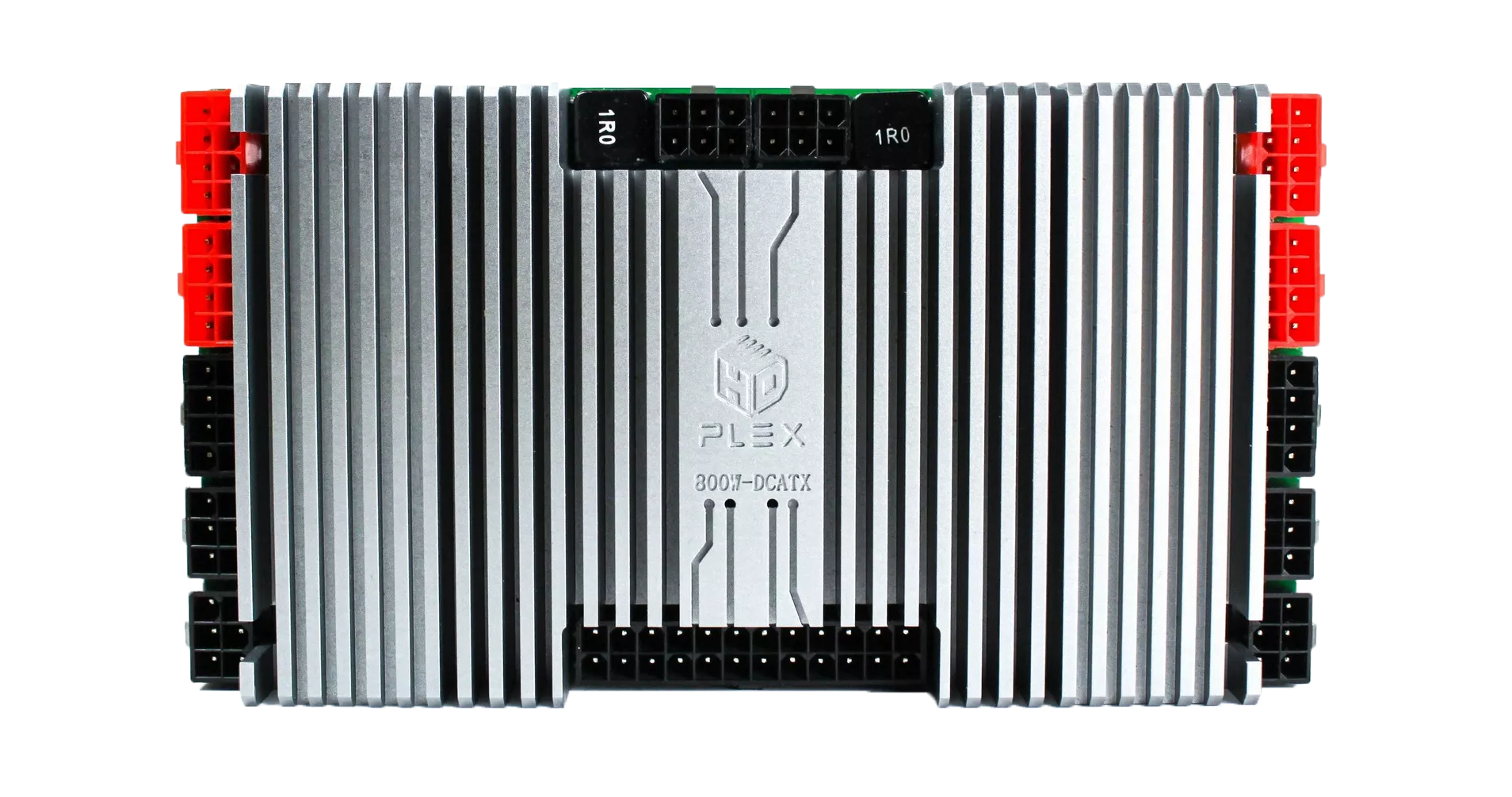

HDPLEX 800W DC ATX
Input Voltage: 12V-63VDC
Wattage: 800W (1200W Peak) >94% DC-DC E ciency
Operating Temperature: -10℃ - 70℃
Safety: OVP, OLP, OCP,SCP
Dimension(without cable) :170(L) x 90 (W) x 31 (H) mm
