5级能效。GaN技术。
超薄迷你电源,无风扇零噪声。
1.18W/cm³ 超高功率密度。

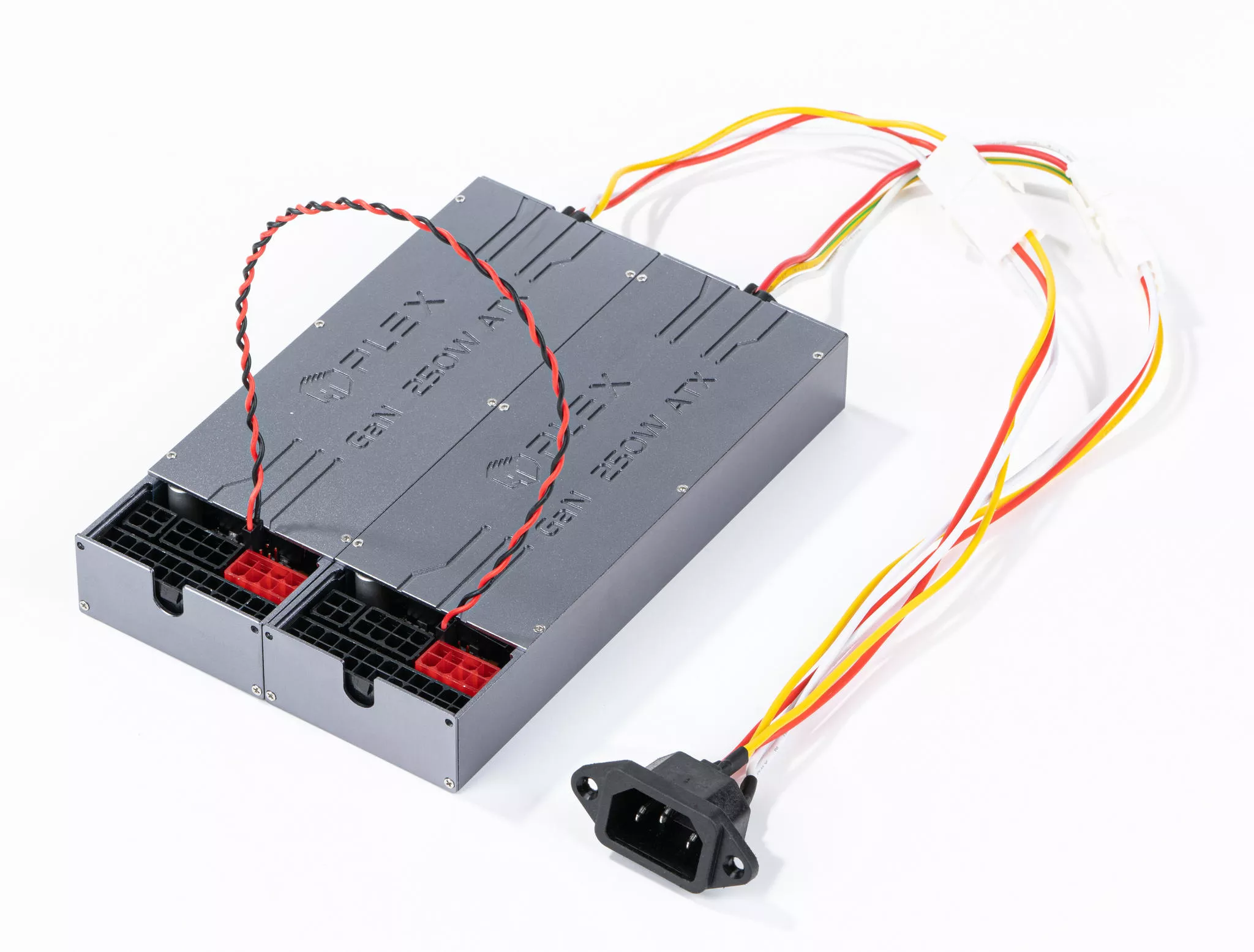

可并联升功率。
UVP, OVP, SCP, OPP, OTP
车轨级芯片,1%精密电阻。PCB镀金工艺。

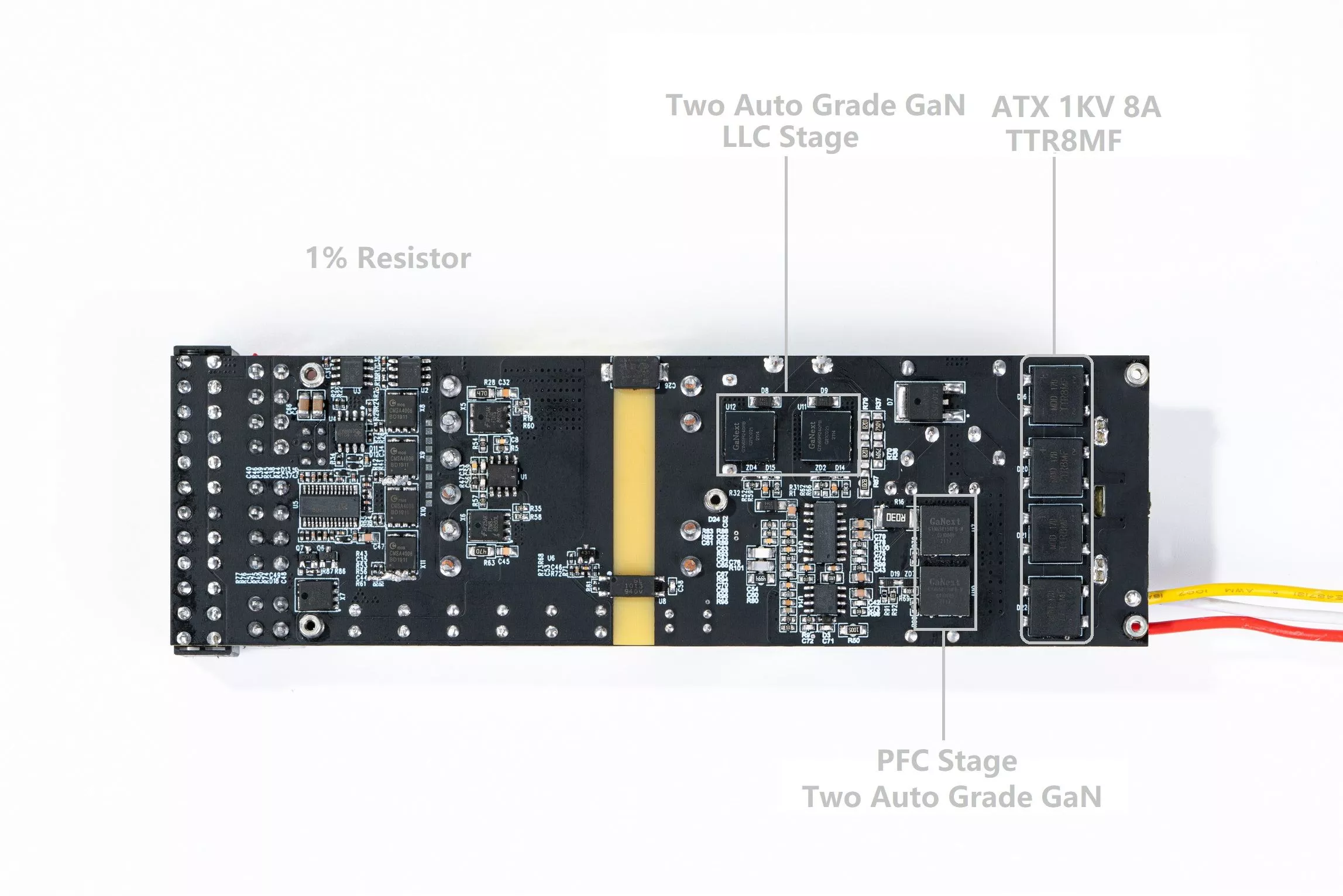

HDPLEX 250W GaN ATX PSU uses advanced PFC+LLC structure, achieve 94% efficiency at full load while satisfy Level V Energy Efficiency standard. The PFC stage utlizes two automotive-grade GaN FET and LLC stage also utlizes two automotive-grade GaN FET. HDPLEX 250W GaN uses four ATX 1KV 8A TTR8MF chips for full-wave rectification and guarantee stable current for the output stage. 1% Resistor to ensure no deviation for every key point in the chain .

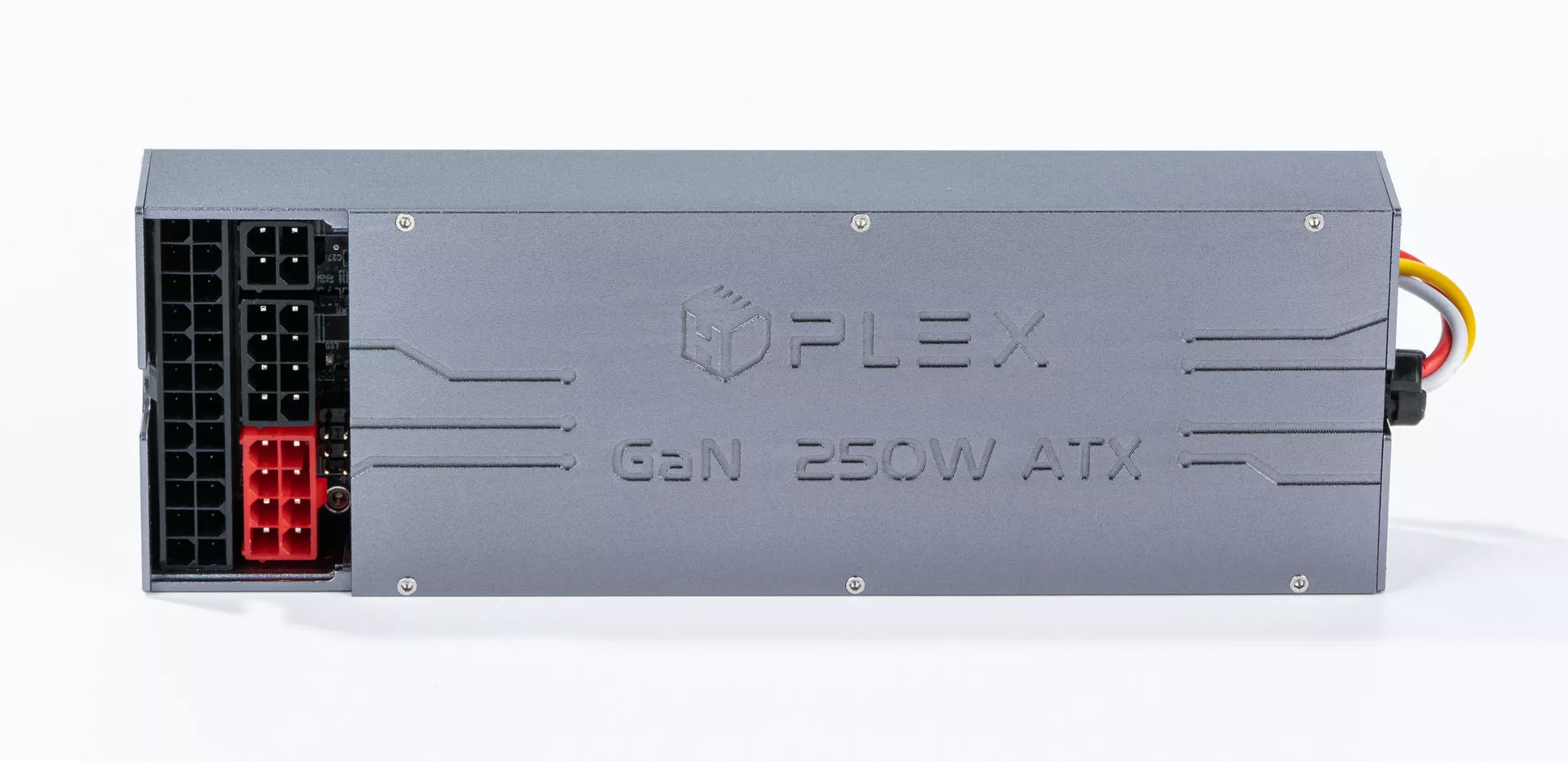

HDPLEX 250W GaN ATX

交流输入型,AC-ATX。无风扇超薄。

Input Voltage: 90V-264V 50/60hz
Wattage: 250W (94% Efficiency).
Idle Power: <0.4W/0.1W
Size: 170(D) x 55 (W) x 25 (H) mm,
Operating Temperature: -10°C - 70°C

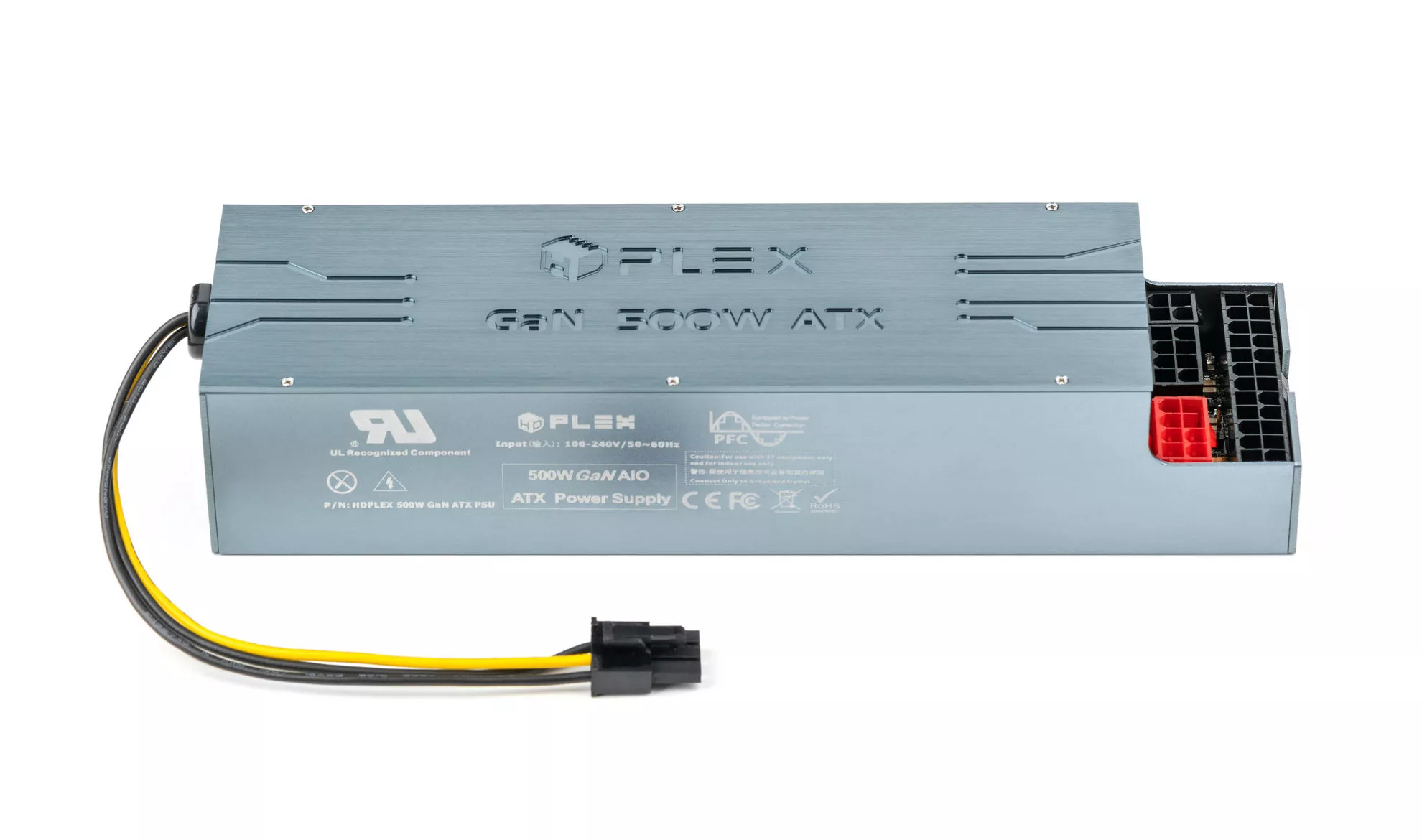

HDPLEX 500W GaN ATX

交流输入型,AC-ATX。

Input Voltage: 90V-264V 50/60hz
Wattage: 500W (94% Efficiency).
Idle Power: <0.4W/0.1W
Size: 200(D) x 55 (W) x40 (H) mm,
Weight: 640gram/23 oz,
Operating Temperature: -10°C - 70°C
